System Introduction

The "BOBC/DCDC Performance Test System for On-Board Chargers" is a functional automated test solution tailored to customer needs. It is suitable for the functional test of chargers, which can ensure the correct function of products and improve product quality to help establish product brands. Whether in terms of cost investment, production efficiency or quality control, its performance and value far exceed traditional manual testing.

The system is designed based on an open hardware and software architecture, which can flexibly expand hardware and quickly establish test programs. The system can be flexibly configured according to customer needs; the system's rich basic test items greatly improve the ease of use of the system, and provide users with a universal, flexible and standardized charger automatic test system solution to the greatest extent possible.

Design Reference Files：

GB/T 20234.2-2015 ，GB/T 20234.3-2015、

GB/T18487.1-2015，QC/T 895-2011、

GB/T 18487.1-2015、 QC/T 1088-2017、

 GB/T 40432-2021、 GB/T 24347-2021。

Overall Design

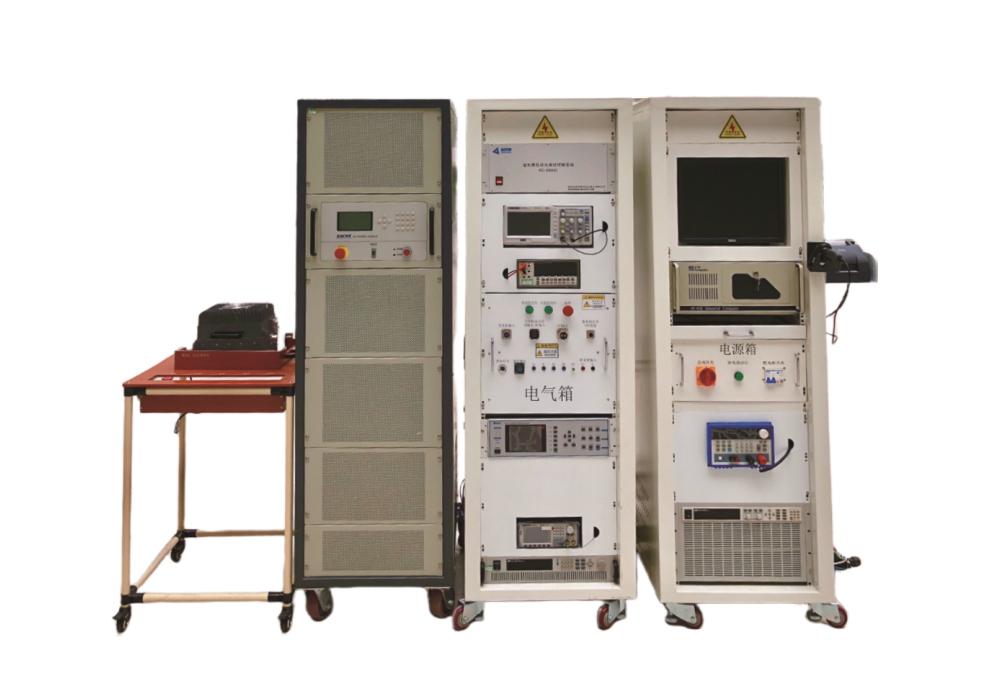

The core of the system is the on-board charger performance test system, and its core is the virtual instrument technology of the NXI bus. Using the integrated measurement and control system and various instruments (power analyzer, oscilloscope, DC power supply/load, AC power supply/load, electronic load, DMM, etc.) independently developed by Jinkaibo, CAN card, charging guidance system simulates the actual working conditions of BOBC/DCDC, uses virtual instrument technology to test related functions, and saves the test results to the database.

This test system can test BOBC or DC-DC separately, or test both functions together, and is compatible with a variety of products such as 1.5KW\3.3KW\6KW\22KW. All test items are directly controlled by the computer, without the need for manual operation of the instrument, to achieve safe, easy to use, accurate and efficient results.

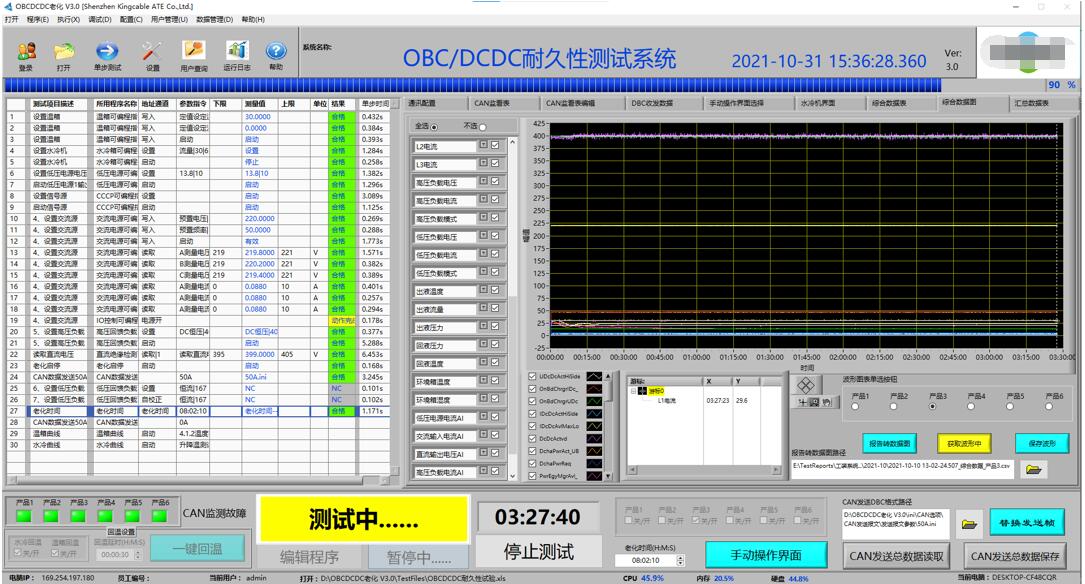

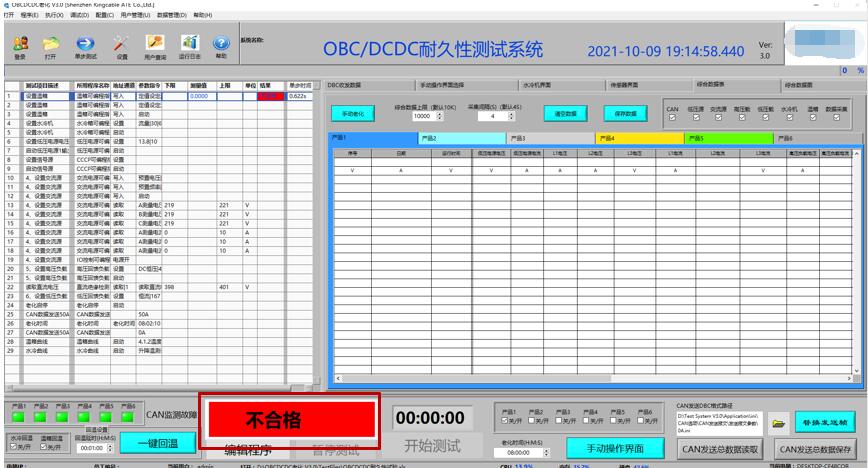

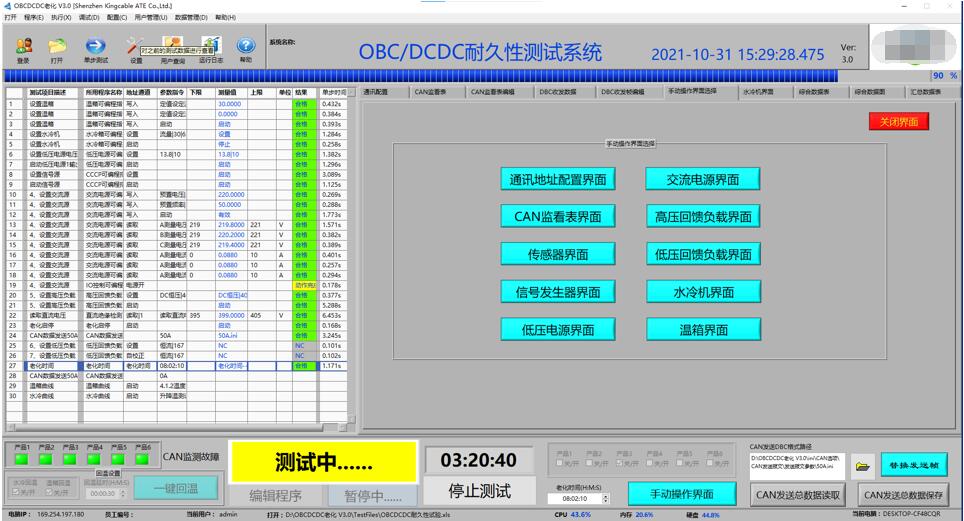

Software Interface

Test items can be adjusted according to customer requirements, such as adding safety tests, high temperature tests, etc.

—————————————————————————————————————————————————————————

Hello! The above product information only lists some of the main test functions. All items supported by the equipment are not listed in detail here.
