Production Line Design Concept

1. Optimal site layout: Combined with site, process, production capacity and other requirements, design the best site layout plan;

2. Optimal logistics path: Design the best logistics path to achieve timely and efficient logistics between warehouses and various production processes;

3. Automated production: Automated production is achieved as much as possible in production operations to reduce worker operations;

4. Easy maintenance of equipment: Reflect the maintainability design of the equipment, and the daily maintenance of the equipment is fast, convenient and simple;

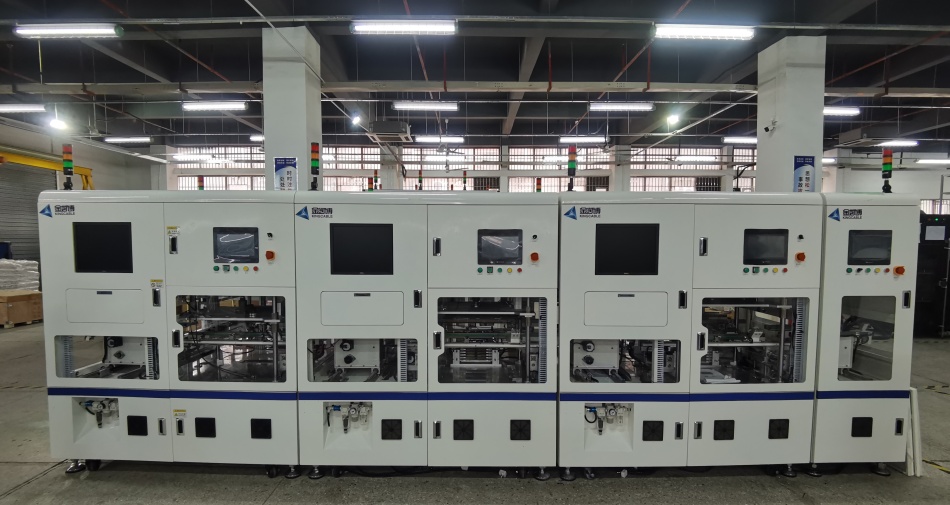

Production Line Features

1. Transport: Responsible for transporting the fixture to each station for operation, and returning the fixture to the initial station after completion to realize the function of automatic circulation of the fixture;

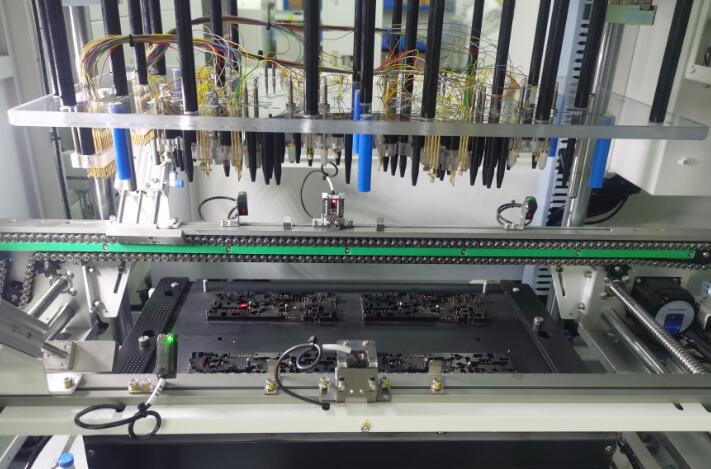

2. Fixture: The test fixtures of ICT, FCT, and burning can be configured in the main interface of the equipment according to the process and size characteristics of the customer's products, and the 1-to-1 to 1-to-4 mode can be selected;

3. Sorting: The robot automatically takes out the PCB board from the ICT and burned fixtures, and sorts out the product status by scanning the barcode information. The defective products are put into the recycling station, and the good products are put into the next station;

4. Transplantation: The fixture is transferred to each FCT station by a transplanter or a robot to scan the barcode for testing. When the previous machine to be tested is tested, the next machine to be tested automatically flows to the next empty FCT Station test;

5. Software: Self-developed measurement and control software, which displays the test status of each test slot through the terminal display, including equipment operation status, equipment capacity, actual capacity, test efficiency, equipment utilization rate, equipment failure statistics within the cycle, pass rate, retest rate and other key information;

6. Manual position: The design of the manual position mechanism is ergonomic, easy and fast to take and put, and the front, back, left and right transmission distance is controllable;

7. UPH: >=400pcs

8. Heating test (optional): After the PCB is loaded, it is first tested at room temperature on the normal temperature platform, and then enters two preheating furnaces through the conveyor belt to preheat the PCB board twice, and finally performs FCT high temperature test in the high temperature furnace, and sorts OK boards and NG boards after coming out.

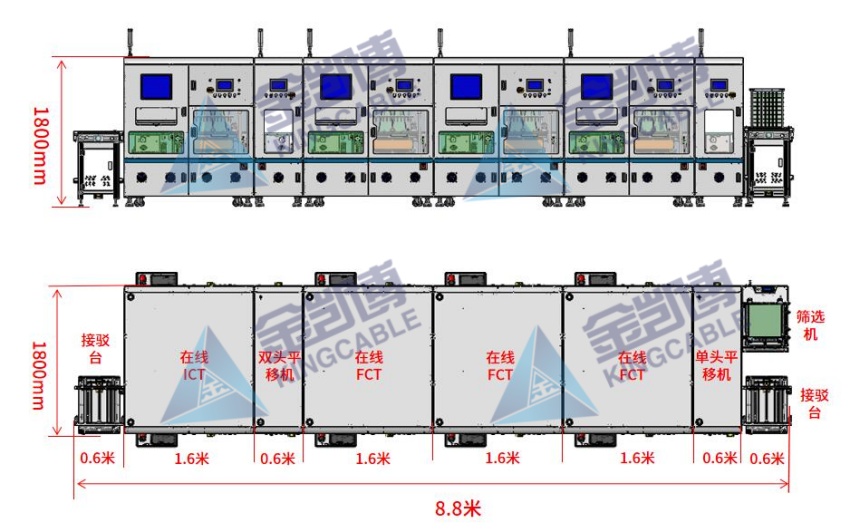

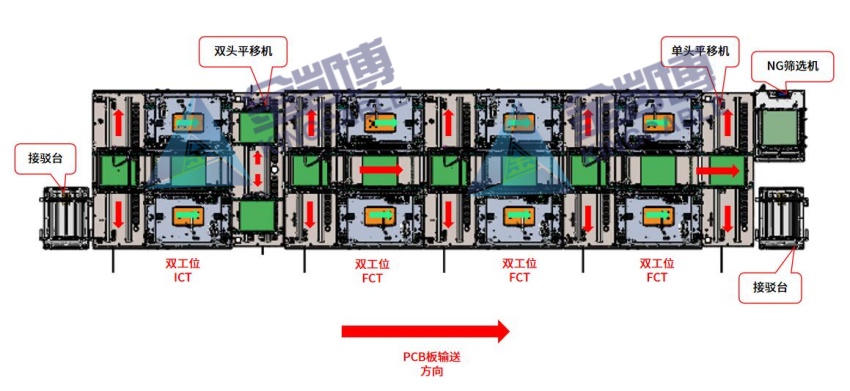

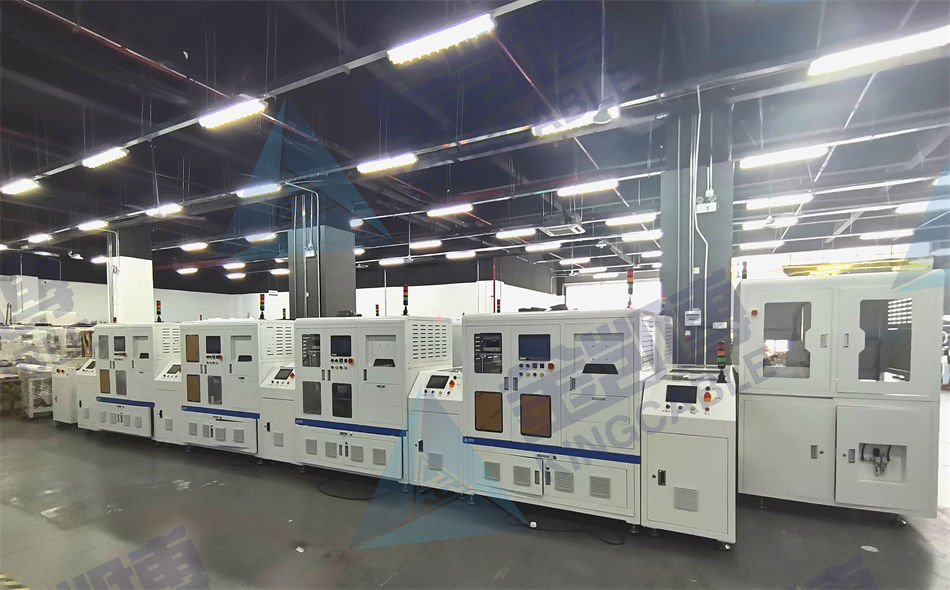

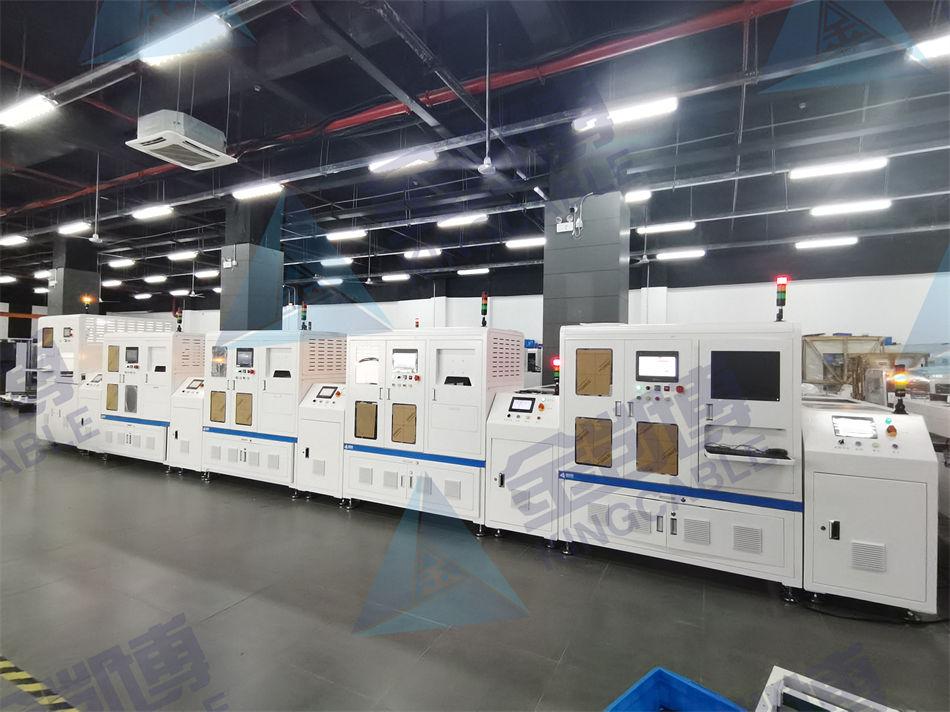

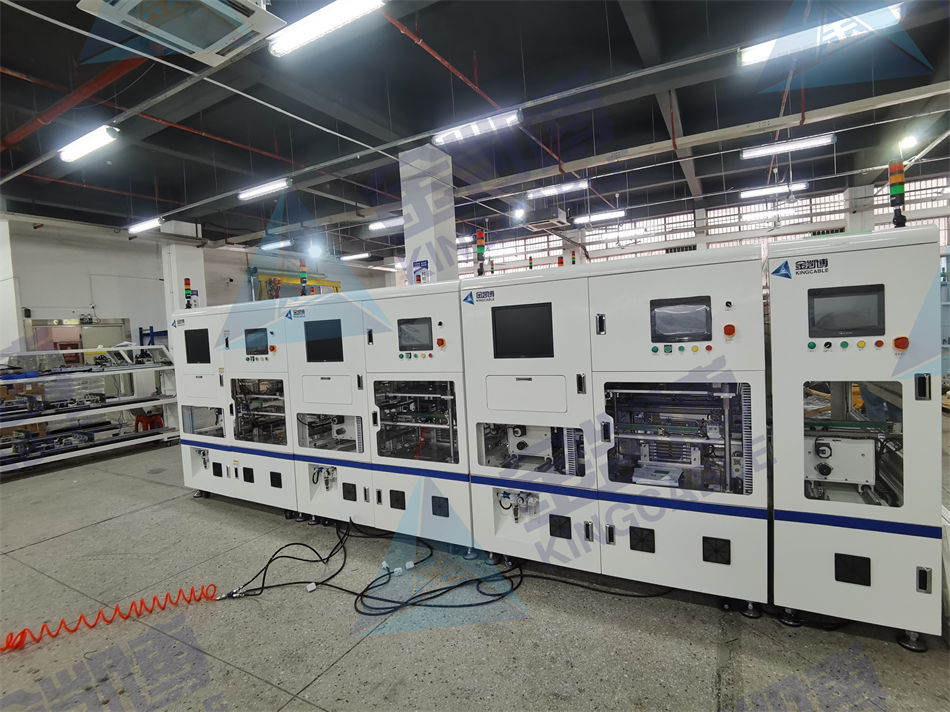

Production Line Layout

Application Industry

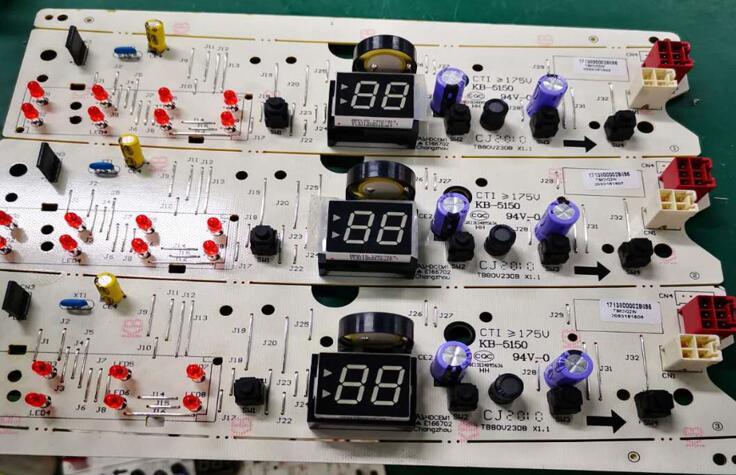

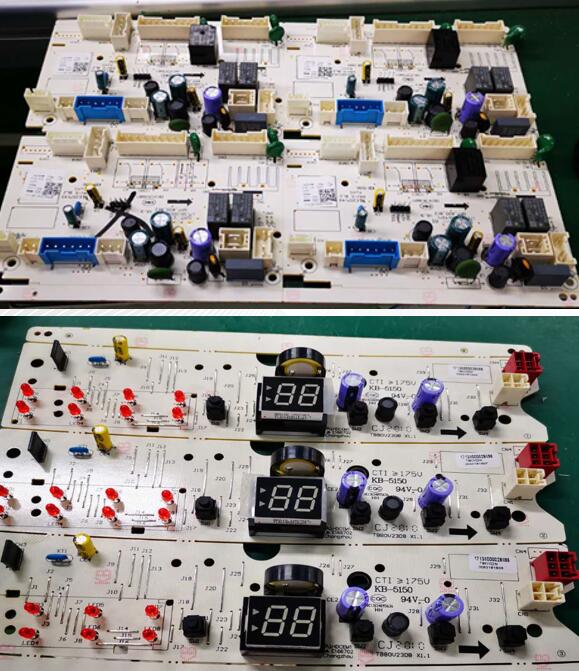

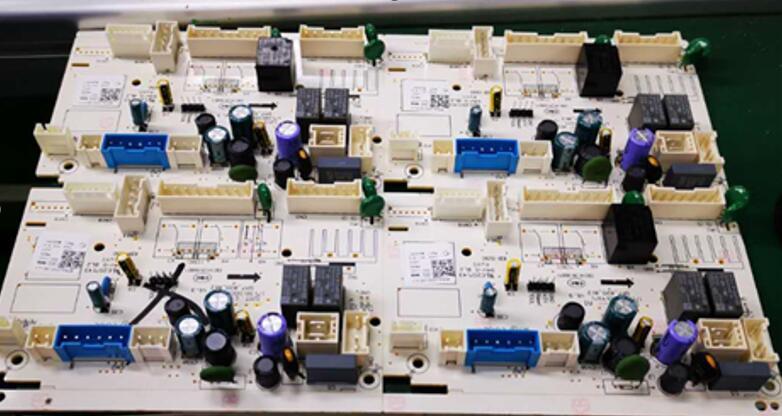

Applicable to ICT+burning+FCT functional testing of various PCBA production lines (home appliances, automotive electronics, new energy, power semiconductors, etc.).

—————————————————————————————————————————————————————————
